How to configure receipt template printing

See how to configure and choose a receipt printing model on Nex. Additionally, see how to register or change name, address, CNPJ and other store details on the receipt.

Important

  • In the Free plan, you can use model 101 of A4 paper to print the receipt. For other printing models, you must be a subscriber to one of the Nex plans. See here more about our program's subscription plans.
  • It is necessary to install the printer driver in Windows for it to work correctly, as just connecting the printer cable to the computer is not enough for it to start printing.
  • For POS-58 and POS-80 printers, 58mm and 80mm printing models must be used, respectively. For other web printers, a 74mm printing model must be used to avoid cutting the edges of the print.

Shall we learn how to configure a print template?

1. Access the SALES screen, in the left side menu.

2. Click on the GEAR icon, in the upper right corner.

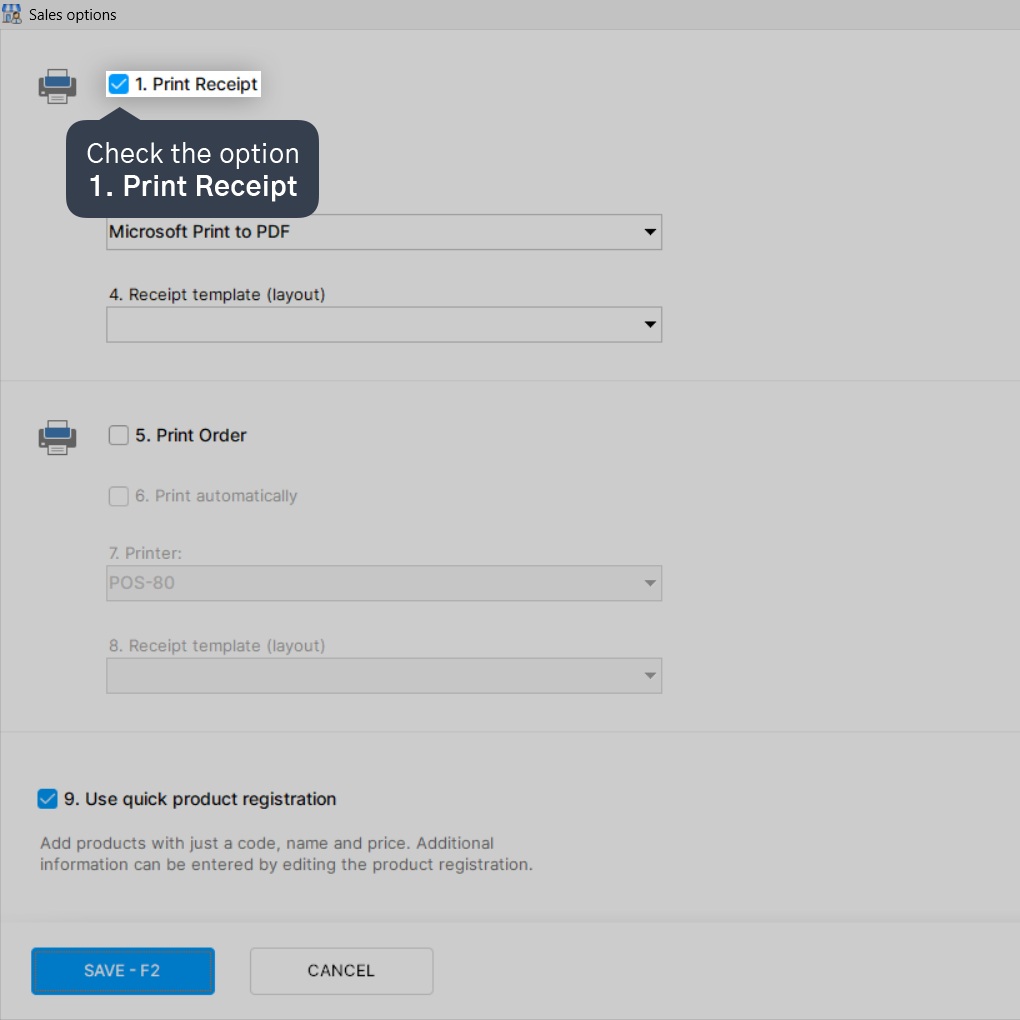

3. Check the option 1. PRINT RECEIPT.

If you prefer, select option 2 to print automatically at the end of the sale.

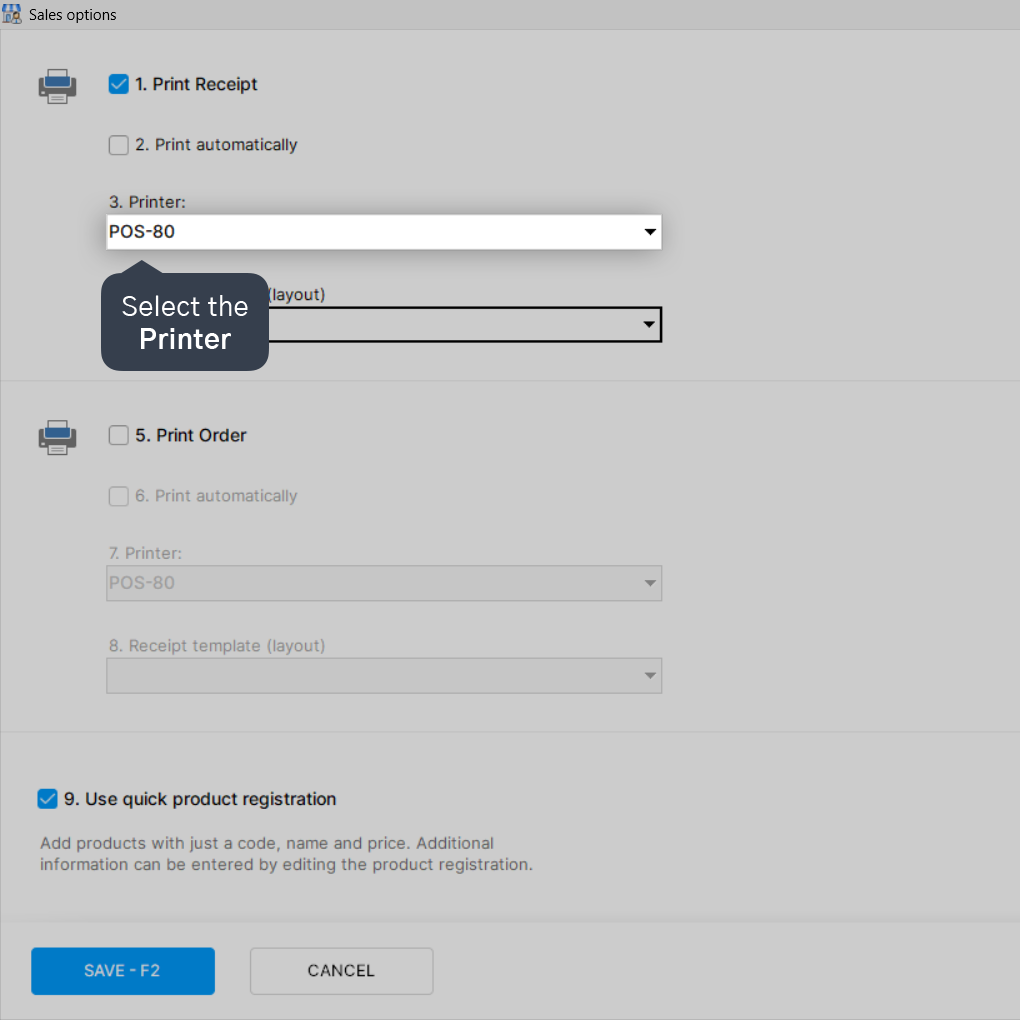

4. In item 3. PRINTER, select the printer you want to use for the sales receipt.

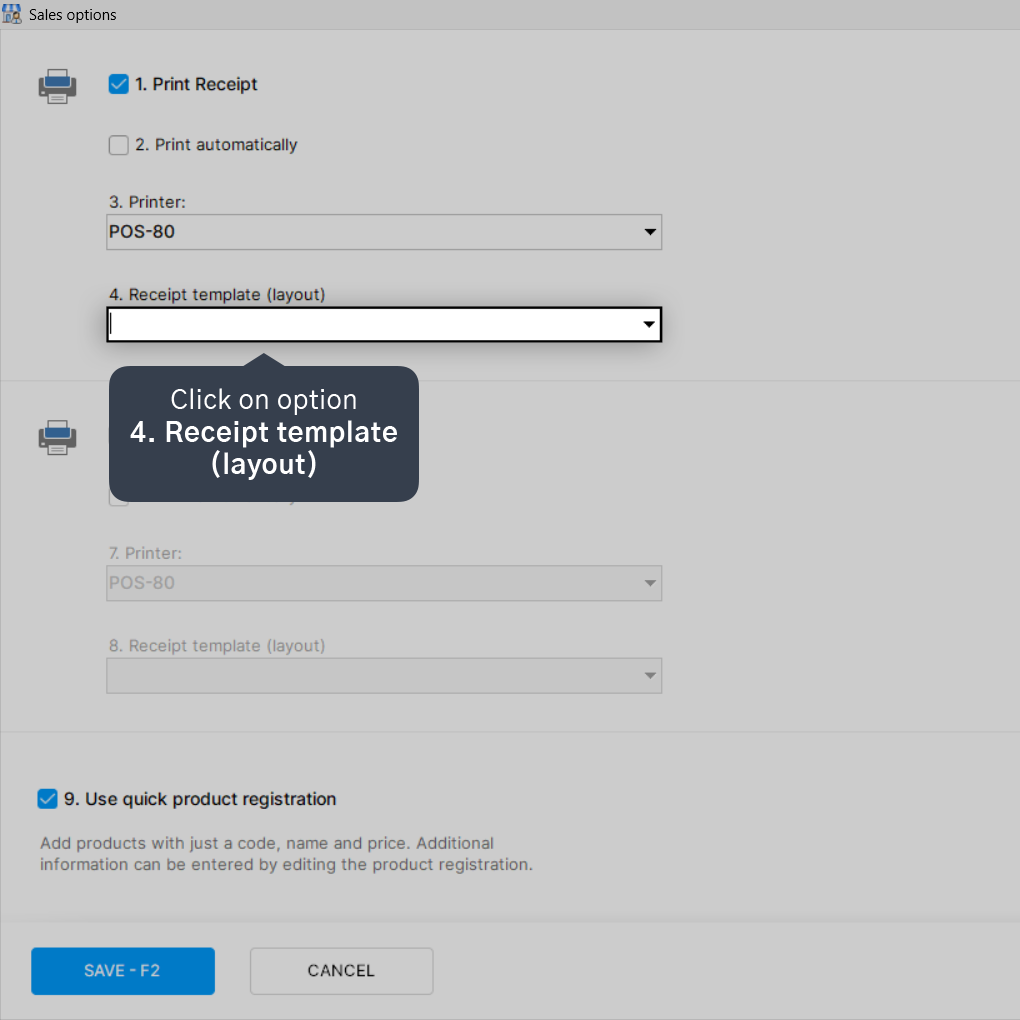

5. Click on option 4. TEMPLATE.

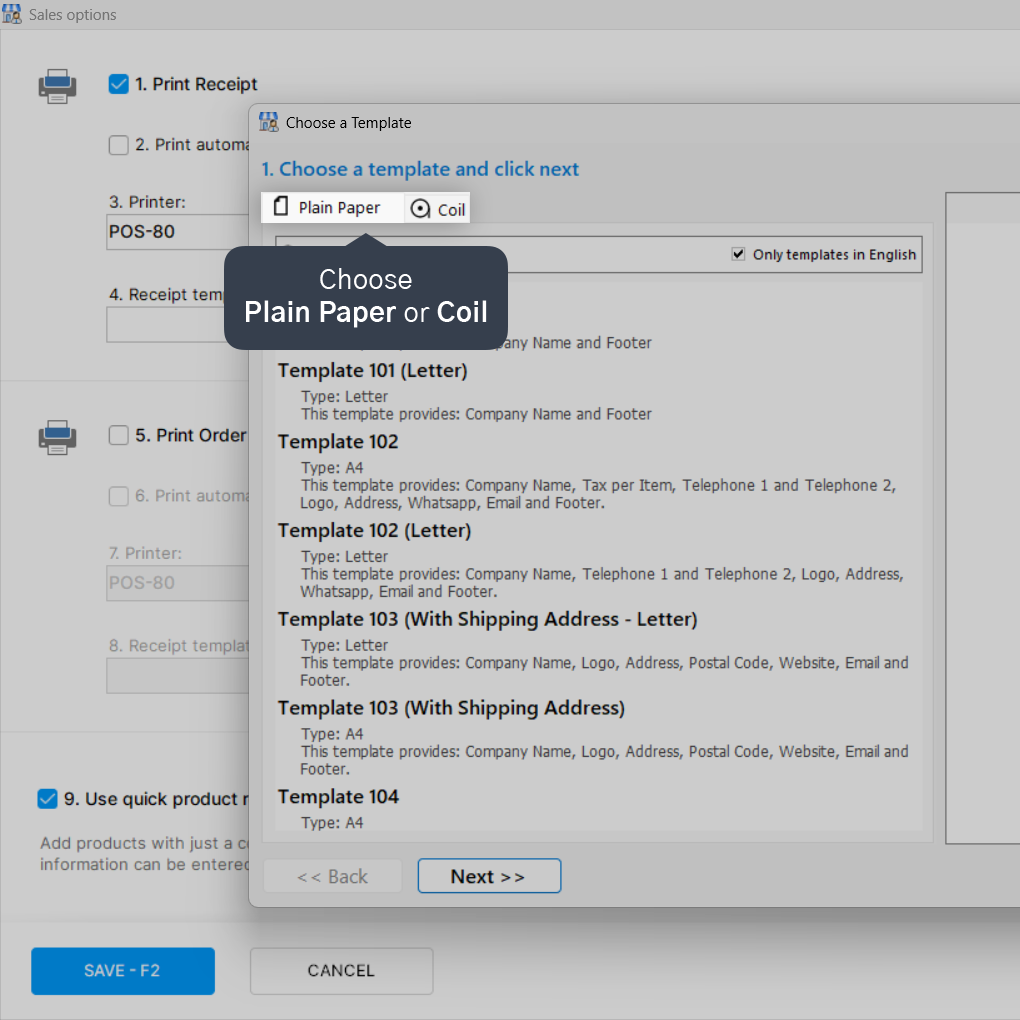

6. Access the models tab according to the type of your printer paper: PLAIN PAPER or COIL.

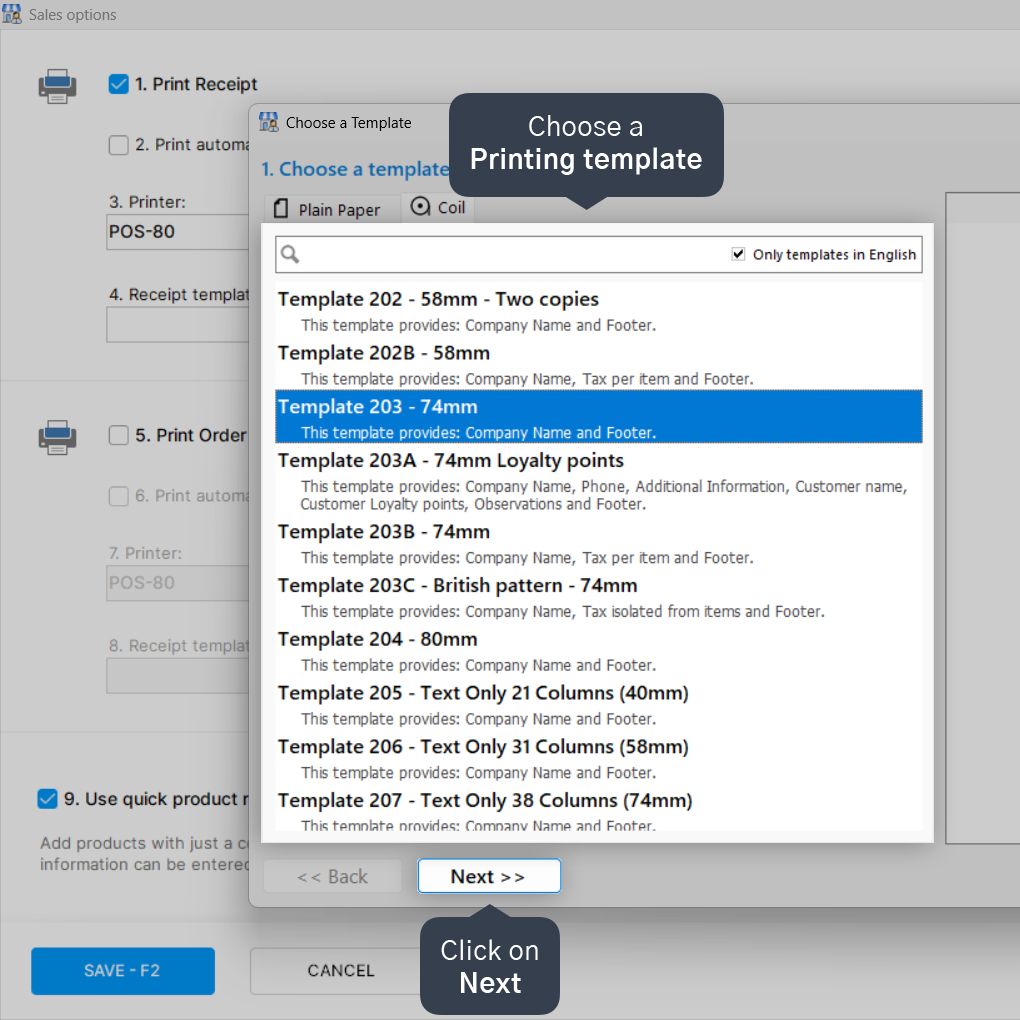

7. Select a PRINT TEMPLATE and click on NEXT.

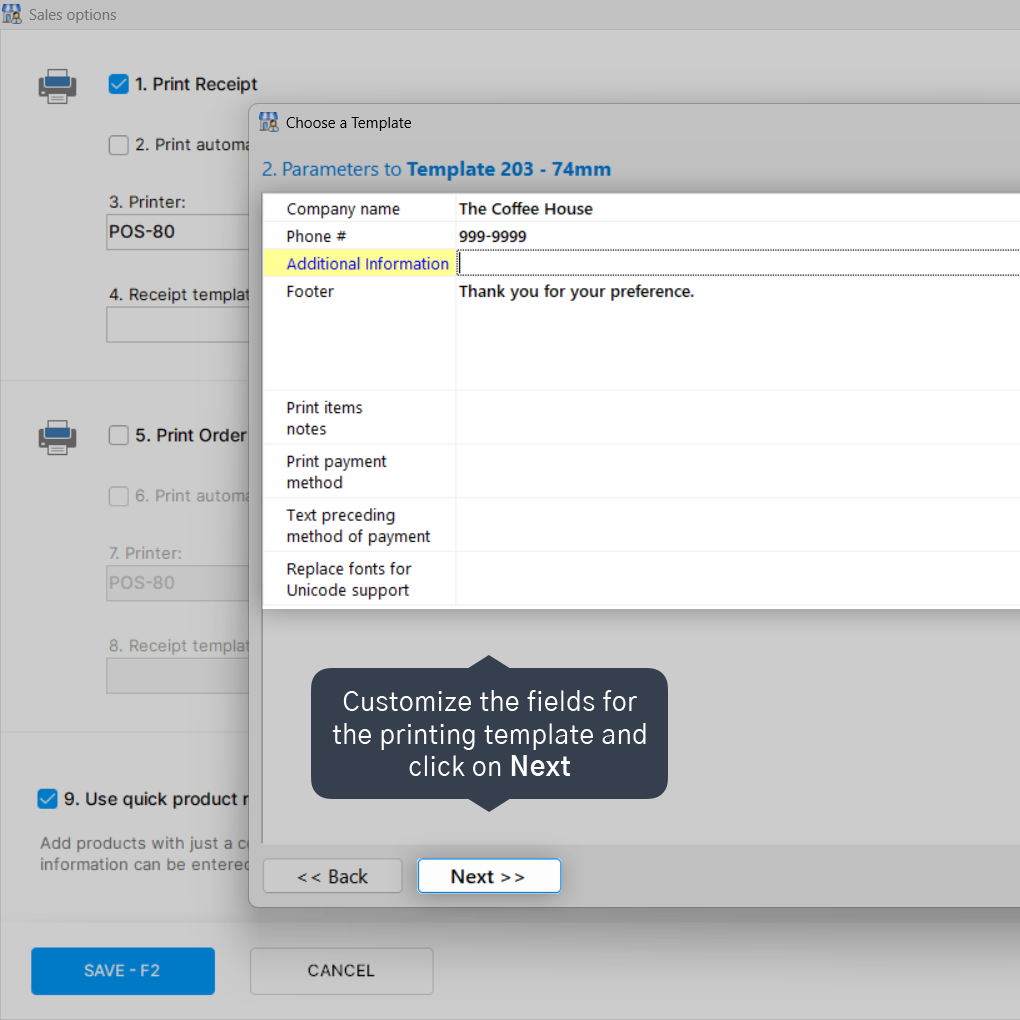

8. Customize the fields for the chosen print template and click on NEXT.

You can indicate or change the name, address, mobile. footer text and other details of your store.

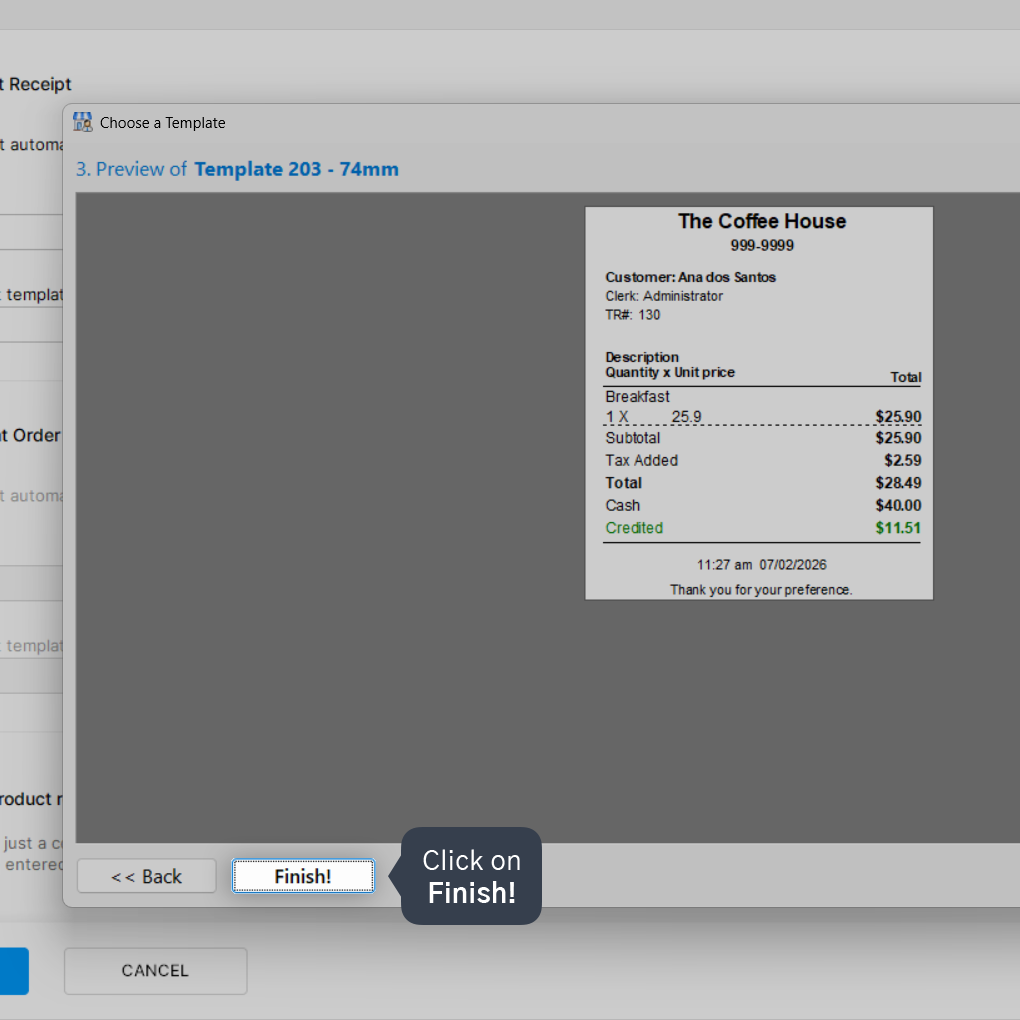

9. Click on FINISH!

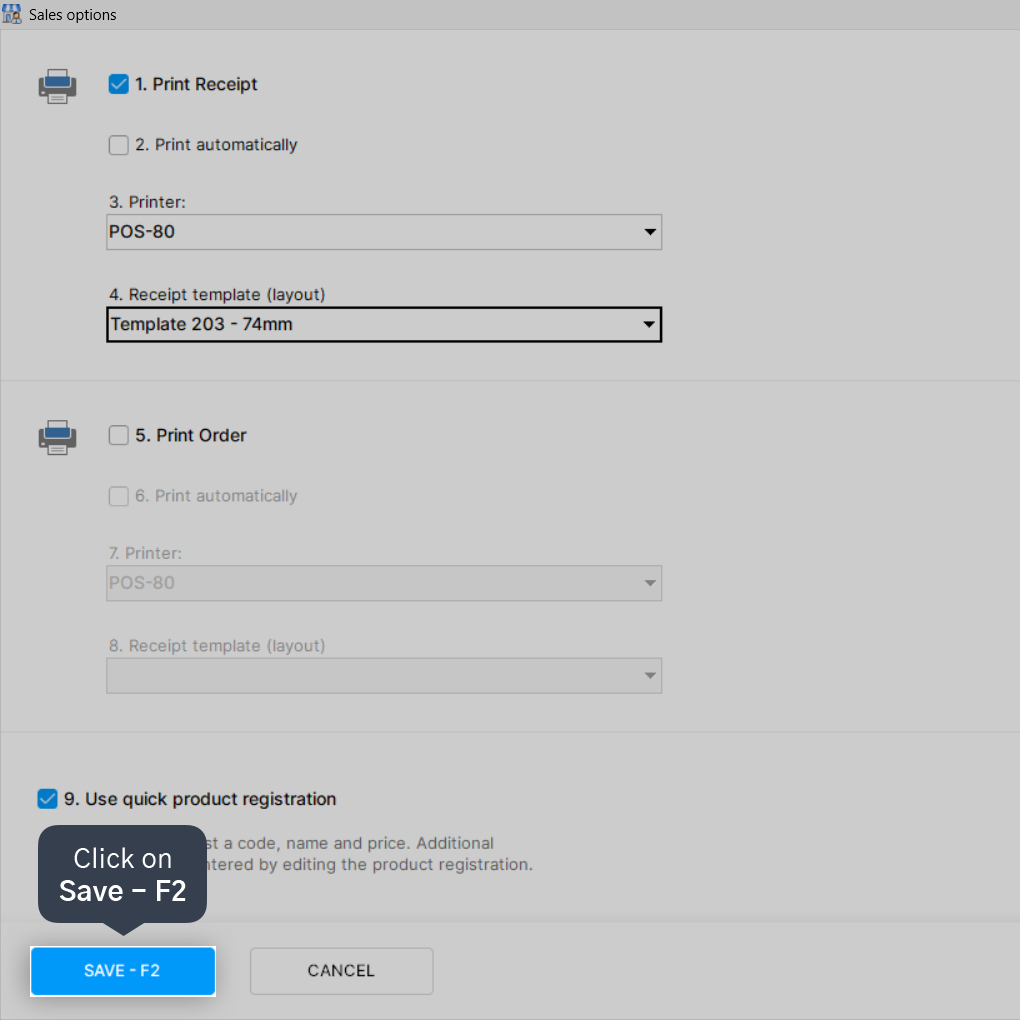

10. Click on OK - F2.

11. Select a transaction and click on OPEN - F2.

12. Click on PRINT.

You can do the same procedure to print 5. PRINT DEBT PAYMENT, 9. PRINT ORDER and 41. QUOTATION.

Done! Receipt printing has been configured in Nex.‍
